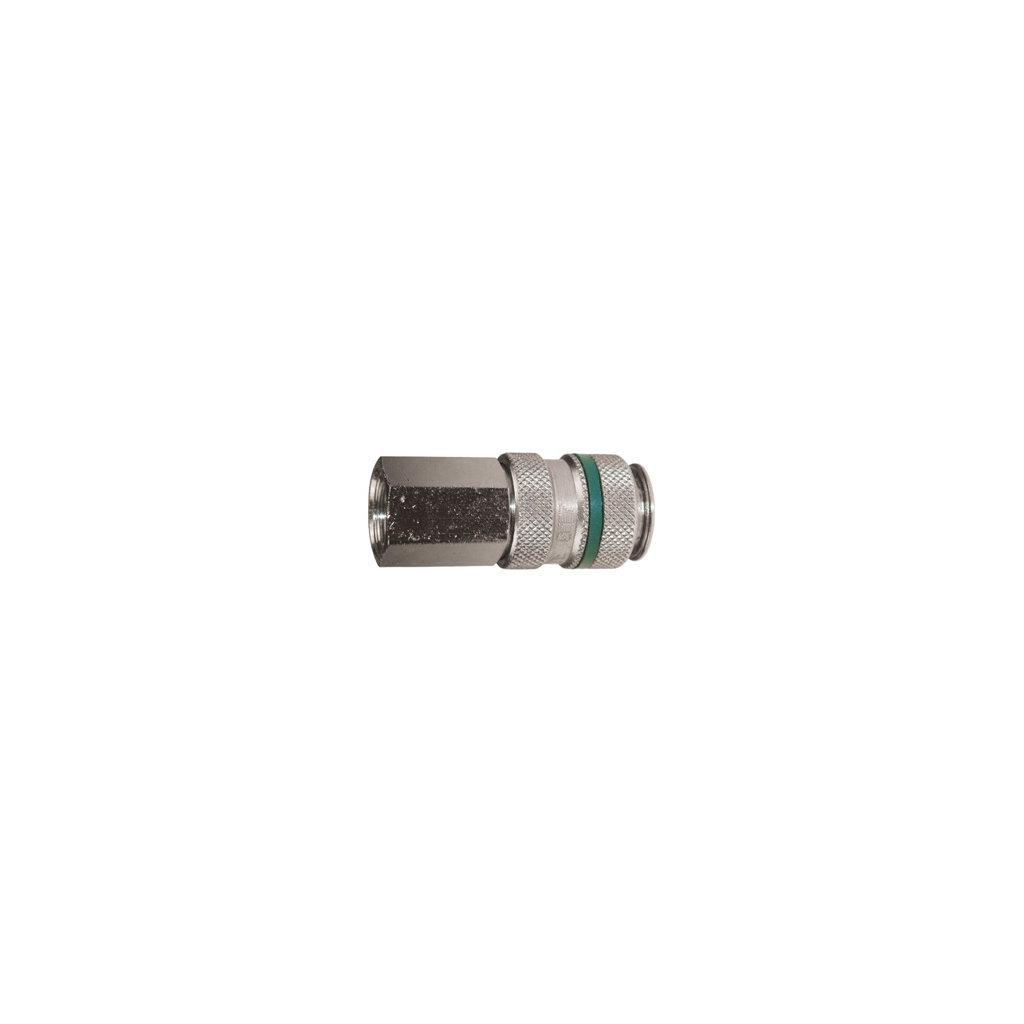

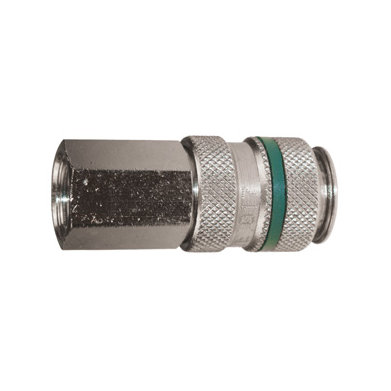

CP17-1202 - Schrader Type 1/4" Female Coupling Series CP17

FEATURES

• Nominal flow diameter 5.0 mm (3/16”)
• Flow capacity 870 l/min (30.7 CFM)
• Max. working pressure 35 bar (508 PSI)
• Temperature range -20°C to +100°C (-4°F to +212°F)

BENEFITS

• Steel light weight construction.
• Simple one hand operation

Specification

MATERIALS

Coupling body Steel nickel plated Coupling back part Brass nickel plated Sleeve Steel nickel plated Valve Brass Springs, locking o-ring & balls Stainless steel Seals Nitrile NBR Nipple Steel nickel plated
