Model Number M5X8SKTSS Part Number M5X8SKTSS
Be the first to review this item
£4.99 ex. vat
£5.99 inc. vat
Features

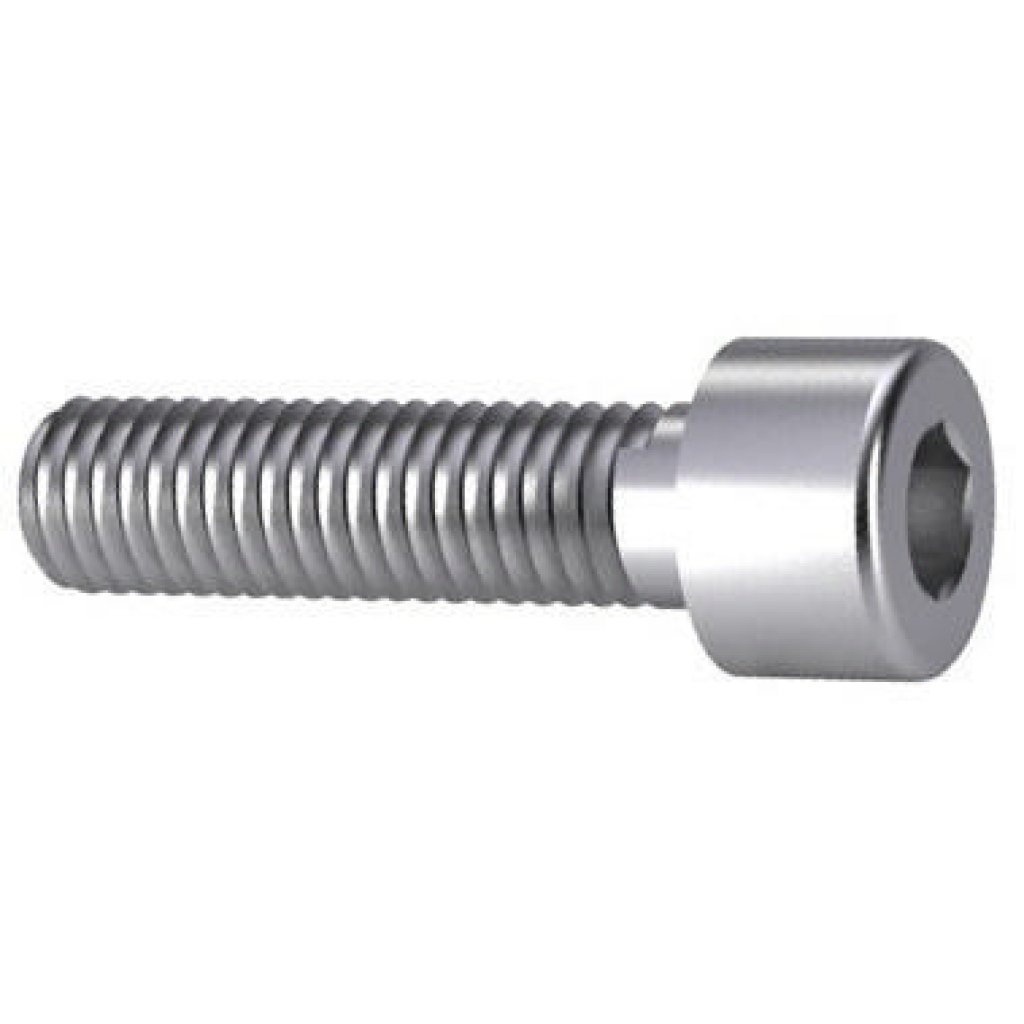

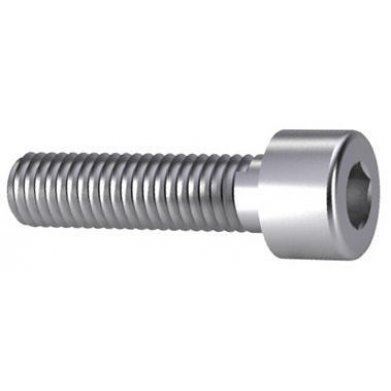

Part-on Range M5 x 8mm Hexagon Socket Head Cap Screw | Bosch Rexroth Alternative
Specification
Technical Data | Specification | |
---|---|---|
Brand | Part-on Range | |
Part number |
|
|
Type | Hexagon Socket Head Cap Screw | |
Size | M5 | |
Length | 8mm | |
Description | Part-on Range M5 x 8mm Hexagon Socket Head Cap Screw | |
Material | Stainless Steel |
Diameter (d-D) | M5 |
---|---|
Length (L) (mm) | 8 |
Class | 70 |
Driving features | Hexagon socket |
Head shape | Cylindrical head |
Material | Stainless steel |
Material technical | A2 |
Thread direction | Right |
Thread | Metric thread |
Info |
|
ASME | B18.3.1M |
---|---|
BS | 4168-1 |
NF | E25-125 |
DIN | 912 |
ISO | 4762 |

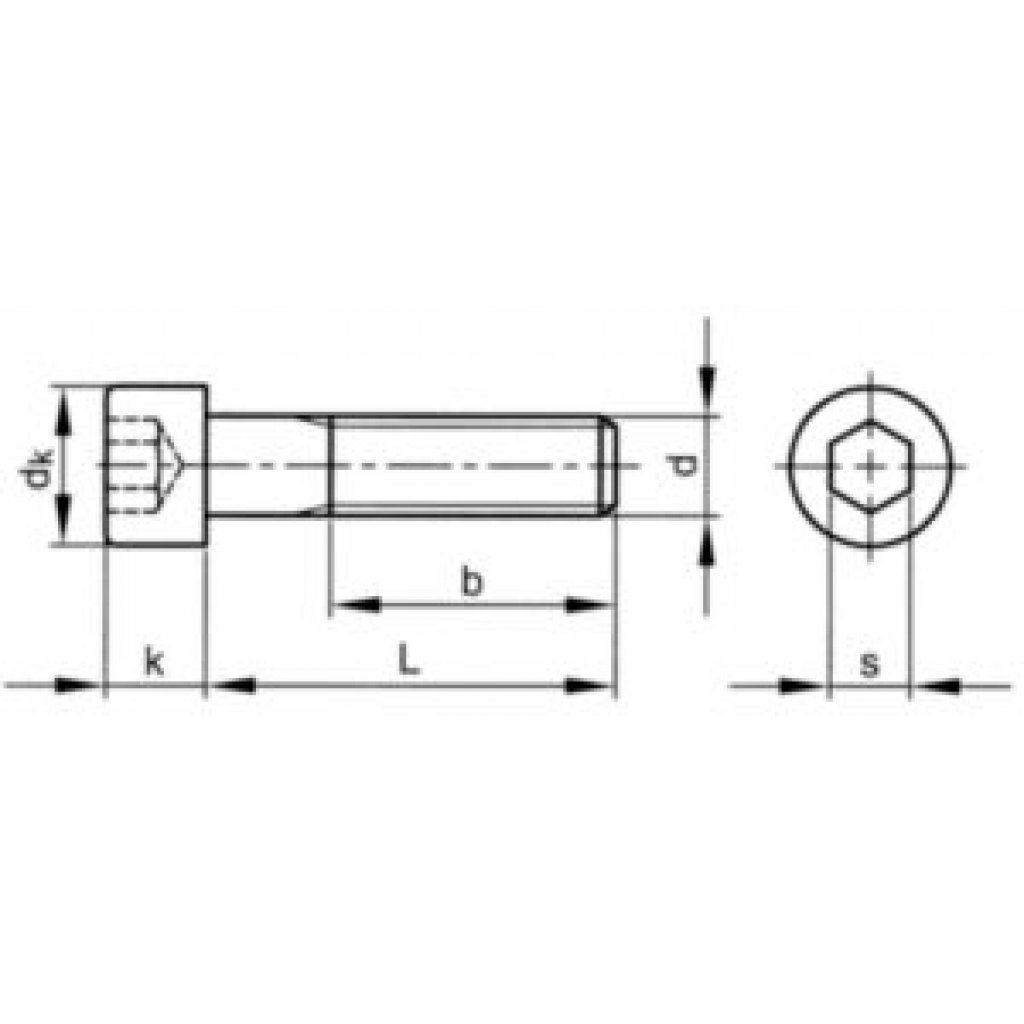

b | 22 |
---|---|
dk (max.) | 8.5 |
Full thread if L ≤ | 25 |
k (max.) | 5 |
P | 0.80 |
s | 4 |
