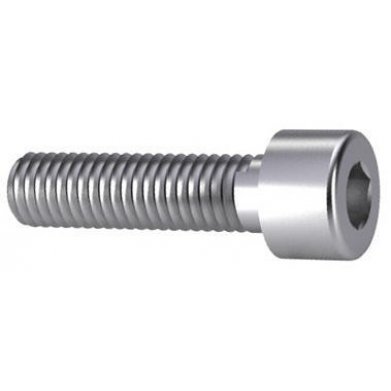

Part-on Range M4 x 16mm Hexagon Socket Head Cap Screw | Bosch Rexroth Alternative
Specification
Technical Data | Specification | |
---|---|---|
Brand | Part-on Range | |
Part number |
|
|
Type | Hexagon Socket Head Cap Screw | |
Size | M4 | |
Length | 16mm | |
Description | Part-on Range M4 x 16mm Hexagon Socket Head Cap Screw | |
Material | Stainless Steel |
Diameter (d-D) | M4 |
---|---|
Length (L) (mm) | 16 |
Class | 70 |
Driving features | Hexagon socket |
Head shape | Cylindrical head |
Material | Stainless steel |
Material technical | A2 |
Thread direction | Right |
Thread | Metric thread |
Info |
|
ASME | B18.3.1M |
---|---|
ISO | 4762 |
NF | E25-125 |
DIN | 912 |
BS | 4168-1 |

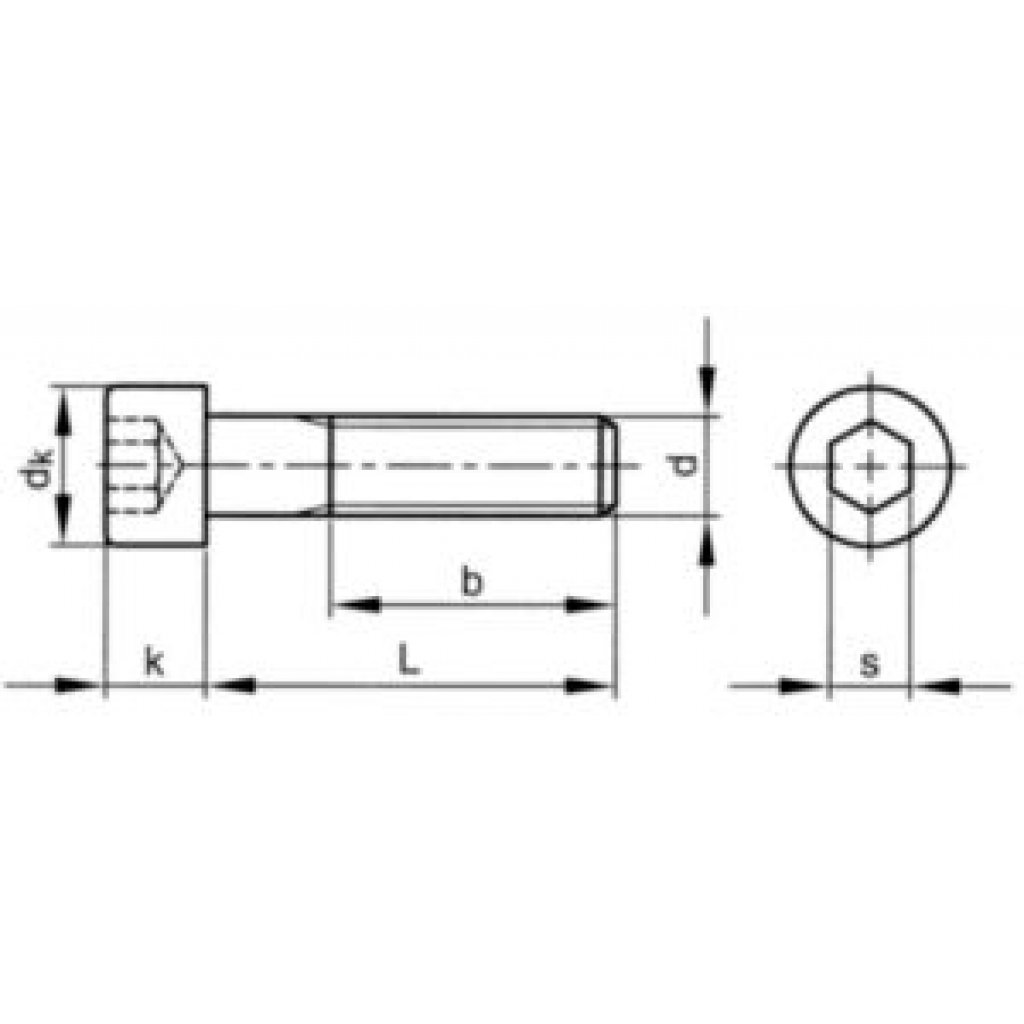

b | 20 |
---|---|
dk (max.) | 7 |
Full thread if L ≤ | 25 |
k (max.) | 4 |
P | 0.70 |
s | 3 |
