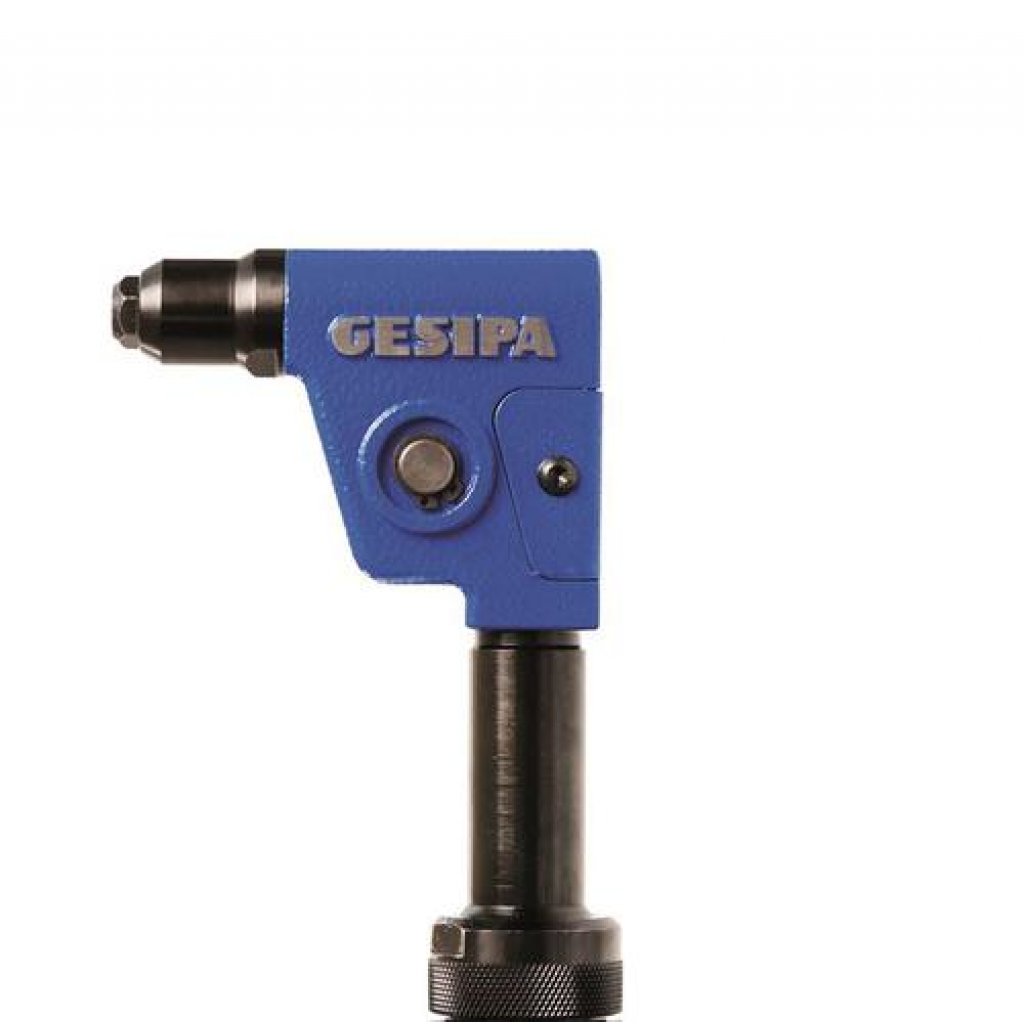

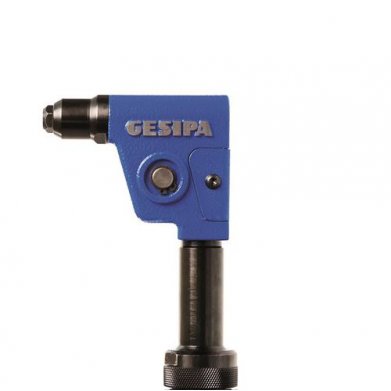

Gesipa 90° Angle Head

Features

Genuine Gesipa Accubird Spare Part.

Scope Of Delivery

Nosepieces: 17/36

Description

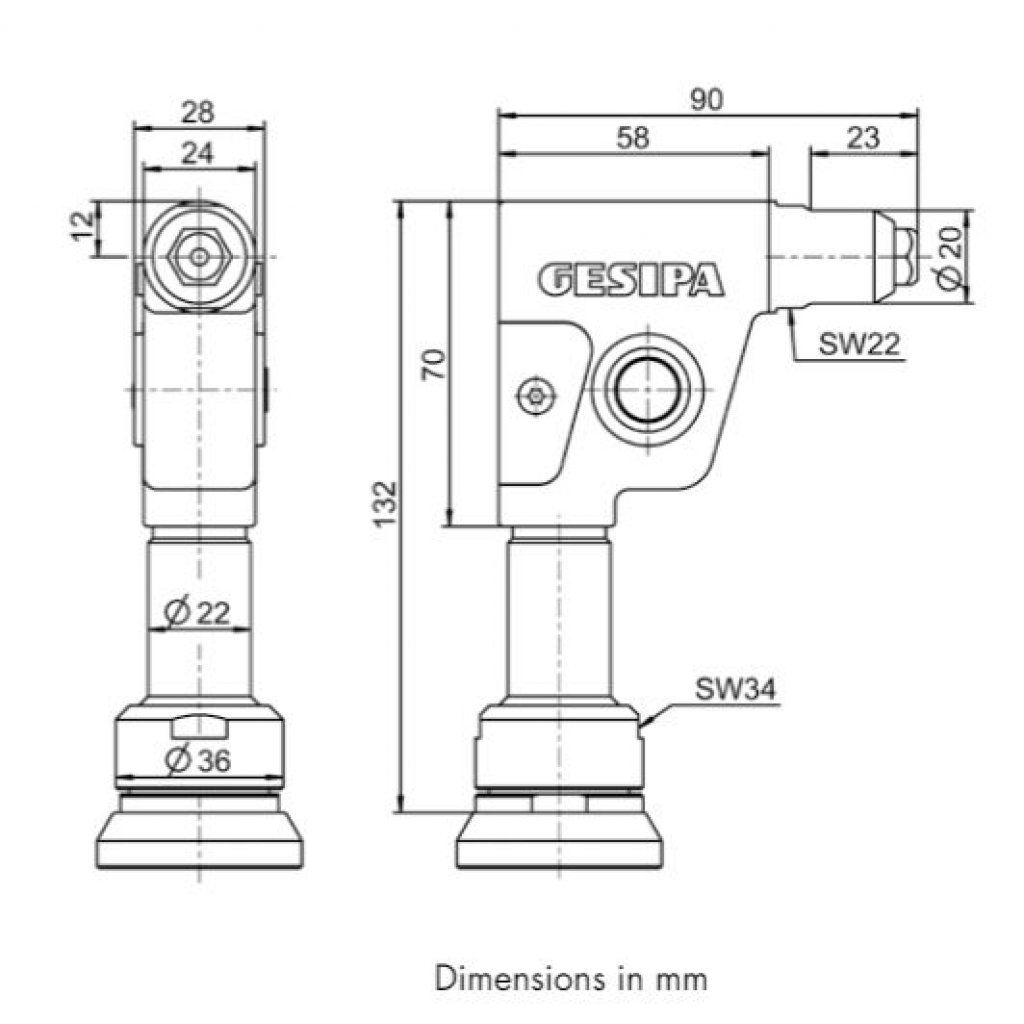

Using the angle head 90° compact for AccuBird allows to set all Types of standard blind rivets up to 5 mm in diameter and aluminium up to 6 mm diameter, depending on the tool Type. The minimum edge clearance is 12 mm, the head length is 90 mm. The angle head can be freely fixed in any position around the AccuBird tensile axis (360° free rotation).

Application

The angle head 90° compact is designed for use in tight spaces. Its sturdy design allows it to apply large setting forces when setting blind rivets even in difficult of access work areas with up to10 kN.

Advantages

• Realisation of small edge clearances (12 mm)
• High setting force in tight installation areas (up to 10 kN)
• Large stroke (up to20 mm)
• Simple assembly
• Compact and robust design
• Simple jaws maintenance
• Use of standard jaws
• Low vibration, even at high breaking force level

Specification

Part-on

• Only supply original manufactured parts
• Have fully equip workshop facilities for in-house tool repairs
• Only UK Gesipa accredited / Certified repair agents
• Hold extensive spare parts stock for all popular models of Gesipa rivet tooling
• Stock New and some used Gesipa rivet tooling & spares
