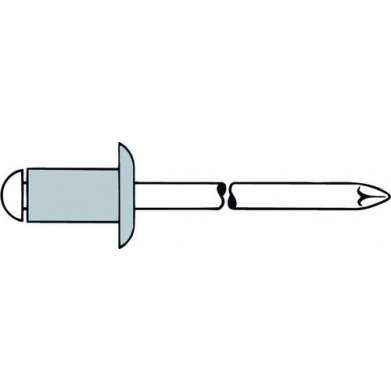

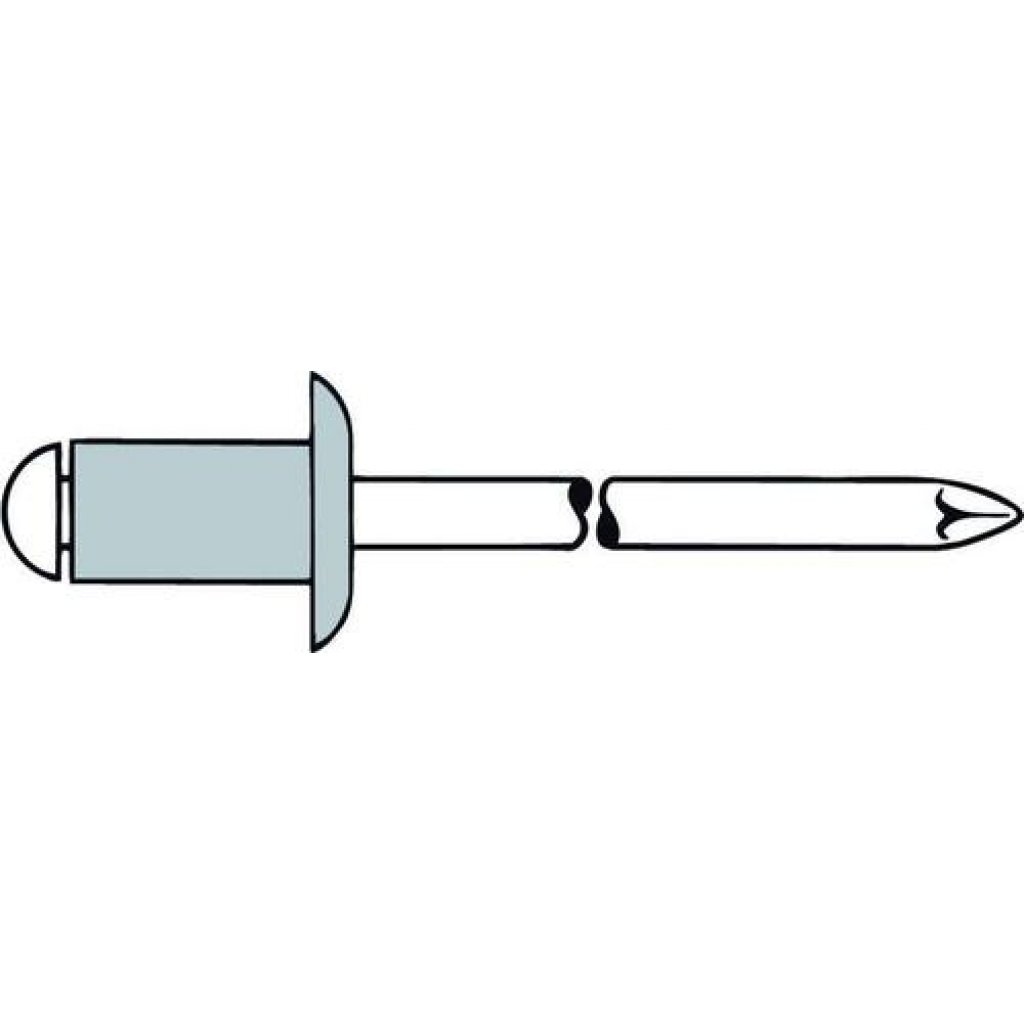

5.0mm Aluminium Steel Domed Head Gesipa Rivet
5.0mm Aluminium Steel Domed Head Gesipa Rivet
Our extensive range of aluminium steel domed head rivets are perfect for a wide range of applications.Features
- Body: aluminium alloy | Mandrel: steel, zinc-plated
- Domed Head
- Grip Range - Please refer to table below
- Wide range of rivet lengths available - Please Select
- Wide range of pack sizes available - Please Select
Call us today on 0121 439 7152 for best price and delivery!
£31.31 ex. vat
£37.57 inc. vat
5.0mm Aluminium Steel Domed Head Gesipa Rivet
| Diameter (d) | Length (L) | Grip Range | Part Number |
|---|---|---|---|
| 5.0mm | 6.0mm | 2.0 - 2.5mm | 1433500 |
| 5.0mm | 8.0mm | 2.5 - 4.5mm | 1433501 |
| 5.0mm | 10mm | 4.5 - 6.0mm | 1433502 |
| 5.0mm | 12mm | 6.0 - 8.0mm | 1433503 |
| 5.0mm | 14mm | 8.0 - 10.0mm | 1454048 |
| 5.0mm | 16mm | 10.0 - 12.0mm | 1433504 |
| 5.0mm | 18mm | 12.0 - 14.0mm | 1454049 |
| 5.0mm | 20mm | 14.0 - 15.0mm | 1454050 |
| 5.0mm | 25mm | 15.0 - 20.0mm | 1433505 |
| 5.0mm | 30mm | 20.0 - 25.0mm | 1454051 |
| 5.0mm | 35mm | 25.0 - 30.0mm | 1454052 |
| 5.0mm | 40mm | 30.0 - 35.0mm | 1454053 |
| 5.0mm | 45mm | 35.0 - 40.0mm | 1454054 |
| 5.0mm | 50mm | 40.0 - 45.0mm | 1454055 |
| 5.0mm | 55mm | 45.0 - 48.0mm | 1454056 |
| 5.0mm | 60mm | 48.0 - 52.0mm | 1454057 |
| 5.0mm | 65mm | 52.0 - 57.0mm | 1454058 |
| 5.0mm | 70mm | 57.0 - 62.0mm | 1454059 |
| 5.0mm | 80mm | 62.0 - 72.0mm | 1433506 |
Rivet Specification
| Rivet Size | Rivet Type | Head Type | Body Material (C) | Mandrel Material (D) | dm (mm) | max.dk(mm) |  |  |
|---|---|---|---|---|---|---|---|---|
| 5.0mm (6-35mm) | Standard | Domed Head | Aluminium alloy | Steel, zinc-plated | 2.7 | 9.5 | 2000N | 2800N |
| 5.0mm (40-80mm) | Standard | Domed Head | Aluminium alloy | Steel, zinc-plated | 2.7 | 9.5 | 1400N | 2000N |
5.0mm Aluminium Steel Domed Head POP Rivet
Standard rivets are blind rivets with a breaking mandrel. They are designed for the fastening, in a fast and simple way, of all kind of materials, when a especially high torque force is not needed.
Types of Applications
- Automotive industry
- Bodyworks – commercial vehicles
- Electronics
- Air Conditioning and Heating
- Construction
- Metal industry
- Metal furniture
- Electrical appliances
- Ladder manufacturing
