Gesipa GAV8000 Eco Automated Rivet System
2.4-6.4mm
Gesipa GAV8000 Eco | Automated Rivet System
Benefits
- Up to 40 rivet settings per minute
- Independent system operation possible
- 2.4-6.4mm Setting Capacity
- PLC control possible
- Intelligent Control - excellent process safety
- Setting of all operating parameters via the display
- Customer-specific software modification
- Maintenance display
- Supplied including one setting pistol
24 Month Manufacturer Warranty
Commissioning and Service Plans Offered
Call us today on 0121 439 7152 for best price and delivery!
£POA

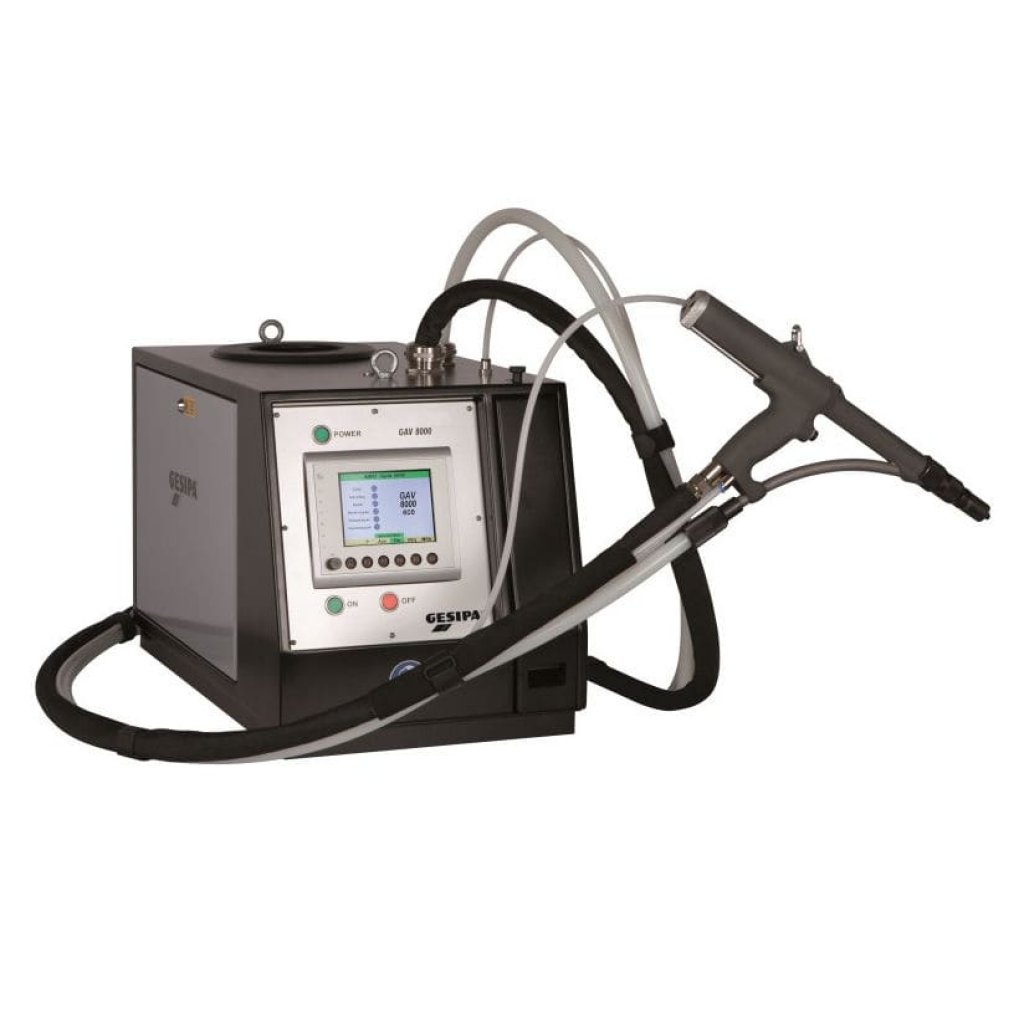

Gesipa GAV8000 Eco Automated Rivet System![]()
Fully automatic blind rivet system for industrial production without setting process monitoring (please see GAV8000 Electronic for process monitoring)
Tool Description
The GAV 8000 is easy to operate using the navigation and function buttons in conjunction with the display and intuitive menu interface. All upcoming maintenance work is also displayed for you and troubleshooting and customer-specific software-related modifications are no problem at all. The GAV 8000 is perfect for any applications that don't require process monitoring (eco variant only). The system can be operated independently or integrated into a system and there is even the option for contact pressure monitoring if required. Mandrel body disposal is incredibly straightforward using an installed vacuum system and an interface for external programmable logic controllers (PLCs) can be set up via the GESIPA-Interface.
Productivity and Potential For Savings
If you need 500,000 blind rivets or more on a yearly basis, the GAV 8000 is the most profitable option for you. The amount of money and time you have to invest can be cut by as much as half in comparison to standard blind riveting tools. This huge potential for savings is brought about by the combination of the many advantages afforded by the GAV: For one thing, you don't need to have any specialist operating staff, as integration into fully automatic manufacturing systems is no trouble at all. What's more, up to 40 blind rivets can be processed every minute within a maximum working radius of 5 m.
Working Range GAV8000
• 2.4 mm up to 6.4 mm Ø alu and copper
• Up to 6 mm Ø steel
• Up to 5 mm Ø stainless steel
• Up to flange diameter 11.4 mm
• Rivet body lengths above 30 mm
• Traction power up to 12,000 N at 6 bar air pressure
Scope Of Delivery
The scope of delivery always includes one setting pistol. This can be freely modified as required.
System Descripion
• Electronic system controls
• Intuitive menu guidance via navigation and function keys
• Function display
• Maintenance display and simple fault diagnosis
• Customer-specific software modification is possible
• Rivet mandrels are disposed of by vacuum system
• Spring loaded trigger system as an optional extra available
• Can be integrated into the system or operated independently
• Interface for external memory programmable control system (SPS) can be realised via the GESIPA interface
Setting Capacity (Standard Rivets)
| Rivet Type | Aluminium | Steel | Stainless Steel | Copper |
|---|---|---|---|---|
| 2.4mm | ||||
| 3.0mm | ||||
| 3.2mm | ||||
| 4.0mm | ||||
| 4.8mm | ||||
| 5.0mm | ||||
| 6.0mm | ||||
| 6.4mm |
Gesipa GAV8000 Eco Automated Rivet System
Working Cycle (theoretical)1.25 sec.
| Specification | Gesipa 8000 Eco |
|---|---|
| Brand | Gesipa |
| Supply Unit Weight | 100kg |
| Spent Mandrel Container Volume | approx. 1800 to 5500pcs (3.5l) depending on size |
| Nominal Voltage | 230 volt - 50Hz |
| Nominal Current | <2.5A |
| Protection Class | IP 54 |
| Supply Pressure | <10 Bar |
| Operating Pressure | 6 Bar |
| Air Consumption/Riveting | 15NL |
| Air Consumption/Spent Mandrel Extraction | 340NL/min |
| Connection Line | 1/2" (12.5mm) max. length 5m |
| Rest Mandrel Extraction Tube | Outer Ø 8 mm/ Inner Ø 5 mm |
| Pressure Transducer | Hydro-Pneumatic |
| Pistol Weight | ca. 2.5kg |
| Pistol Stroke | 16 - 20mm |
| Pistol Traction Power | 12,000N |
| Standard Tube Package Length | 3.75m (max. 5.0m) |
