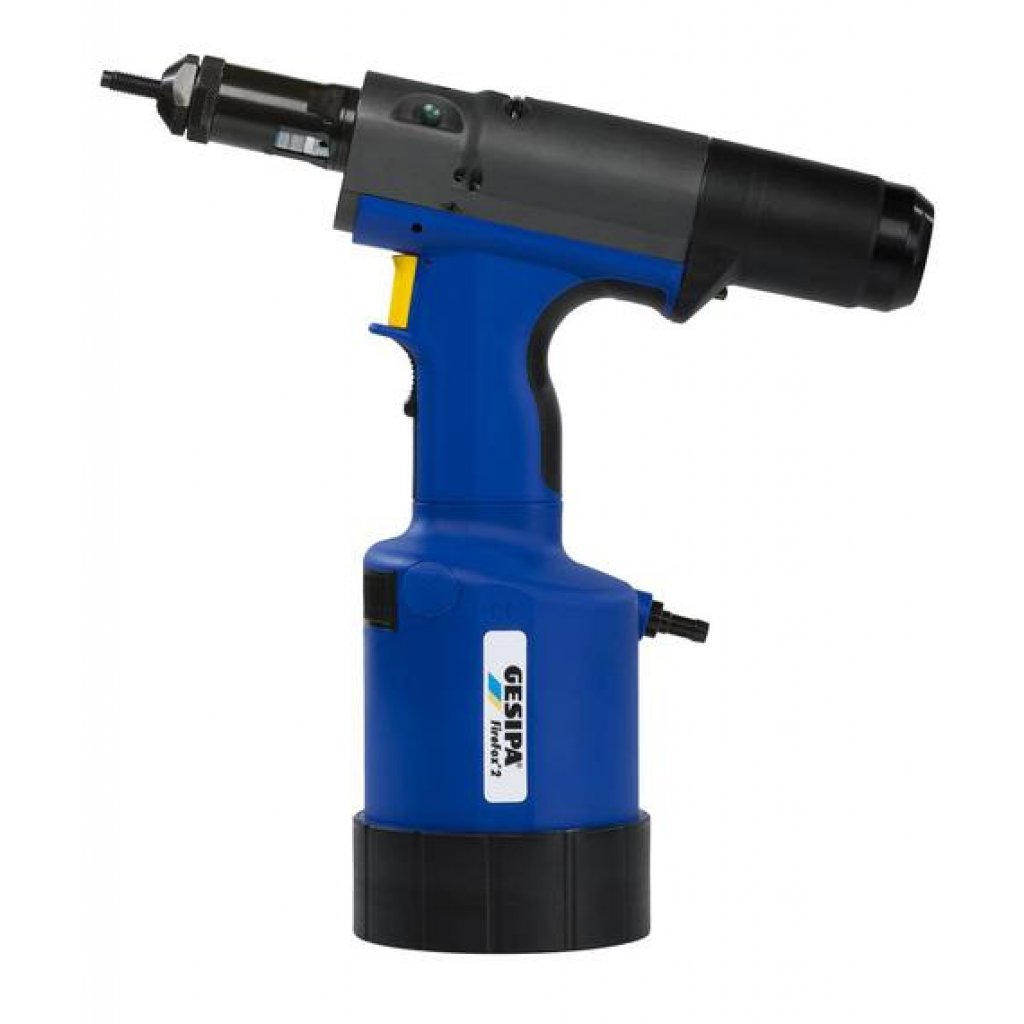

Gesipa Firefox 2 Air Rivet Nut Tool
M3 - M12
Gesipa Firefox 2 | Air Rivet Nut Tool
Our extensive range of Gesipa Air Rivet Nut Tools Genuine Gesipa Tooling Subject to Stock & Availability
Benefits
- Lightweight, Fast Operation
- Ideal For High Volume Production
- Tool Features Automatic Spin On Feature
- Tool Features Automatic Spin Off Feature
- Stroke (Adjustable) Max 10.0mm
- Traction Power (Adjustable) Max 22.000 kN
- M3 - M12 Setting Capacity
- Capable Of Setting Rivet Stud Bolts
- Nose Assembly's Included
- 2 Year Manufacturer Warranty (click to view)
- Part-on Can Service & Provide Spare Parts For This Tool
Call us today on 0121 439 7152 for best price and delivery!
was £2,216.84
£1,373.19 ex. vat
£1647.83 inc. vat
Gesipa Firefox 2 Air Rivet Nut Tool
Features
The Gesipa Firefox 2 Air Rivet Nut Tool is used to fasten blind rivet nuts in a wide range of materials including Aluminium, Steel & Stainless Steel.
This Firefox is capable of setting Rivet Stud Bolts. These nose assemblys are not supplied with the tool but are avaliable upon request.
The FireFox® 2 can be optionally controlled via the stroke or setting force setting. Especially the latter protects the material to be joined as well as the thread, ensures secure anchoring of the blind rivet nut while providing a high degree of process reliability. The choice whether stroke or setting force-controlled depends on the length of the blind rivet nut and the thickness of the material. The setting force needs to be adjusted for blind rivet nut sizes of the same or varying length in different material thicknesses. If the same blind rivet nut size and length are always set into the same material thickness, it is possible to apply a constant setting stroke.
- Fast & Precise Setting Force Adjustment With Colour-Coded Setting Ring
- New Stroke Scale Quick & Easy To Set Even Under Poor Light Conditions
- Maximum Stroke Clearly Identified By Blue Ring On Stroke Scale
- Throttle Plate: Automatic Throttle For Even Faster & Protective Setting As From M3 Blind Rivet Nuts
- PTFE (Teflon®) Seal. PTFE Seal & Optimised Pilot Holes Improve The Service Life Of The Slide Valve
Benefits
- Lightweight, Fast Operation
- Ideal For High Volume Production
- Tool Features Automatic Spin On Feature
- Tool Features Automatic Spin Off Feature
- Stroke (Adjustable) Max 10.0mm
- Traction Power (Adjustable) Max 22.000kN
- M3 - M12 Setting Capacity
- Capable Of Setting Rivet Stud Bolts
- Nose Assembly's Included
- 2 Year Manufacturer Warranty (click to view)
- Part-on Can Service & Provide Spare Parts For This Tool
Do you require a tool repair / service? Click Here!
Setting Capacity (Rivet Nuts)
| Rivet Nut Type | Aluminium | Steel | Stainless Steel | Nose Assembly Included |
|---|---|---|---|---|
| M3 | ||||
| M4 | ||||
| M5 | ||||
| M6 | ||||
| M8 | ||||
| M10 | ||||
| M12 |
Setting Capacity (Rivet Stud Bolts)
| Rivet Bolt Type | Steel | Nose Assembly Included |
|---|---|---|
| M3 | ||
| M4 | ||
| M5 | ||
| M6 | ||
| M8 | ||
| M10 | ||
| M12 |
// ]]>
Gesipa Firefox 2 Air Rivet Nut Tool
| Specification | Gesipa Firefox 2 |
|---|---|
| Brand | Gesipa |
| Model | Firefox 2 |
| Part Number | 1458086 |
| Type | Air Rivet Nut Tool |
| Operating Mode | Compressed Air |
| Setting Capacity | M3 - M12 |
| Stroke | (Adjustable) Max 10.0mm |
| Traction Power | (Adjustable) Max 22.000 kN |
| Spin On | Automatic |
| Spin Off | Automatic |
| Sets Rivet Stud Bolts | Yes |
| Operating Air Pressure | 5 - 7 BAR |
| Weight | 2.40kg |
| Warranty | Two Year |
| Contents | Gesipa Firefox 2 Tool | Supplied With Nose Assembly's |
Most blind rivet nut setting devices are stroke controlled, while only a few are setting force controlled. The FireFox® from GESIPA® represents a new generation of blind rivet nut setting device: simply, quickly and safely.
Reasons To Buy A Firefox ?
The innovative one – Setting blind rivet nuts with traction force adjustment. This means that the tool will stop pulling the blind rivet nut when a pre-adjusted traction force threshold is reached. No re-adjustment is needed when setting blind rivet nuts into different material thicknesses or when using blind rivet nuts with different shaft lengths. Traction force control prevents damage of the material which cannot be overstressed by a too high setting pressure and preserves the integrity of the blind rivet nut thread. As a bonus, it also extends the life duration of thethreaded mandrels.
Fast and precise setting force adjustment with colour-coded setting ring. The required setting force is selected with a hexagon screwdriver directly on the tool.
The simple one – Easy operation through automatic drill-on function. The drill-on process will automatically start when a blind rivet nut is lightly pressed onto the mandrel tip. This avoids the cumbersome double action on twin triggers. Thereafter introduce the blind rivet nut into its setting hole, press the trigger and keep it pressed until the setting cycle is completely finished, nut drilled off and tool free. It couldn’t be easier!
The fast one – Extremely fast working cycle. Great care has been taken to shorten every sequence of the setting cycle to its absolute minimum: Pulling sequence and subsequent automatic drill-off take place at breathtaking speed and require only a single action on the trigger.
The versatile one – Sets blind rivet nuts from M3 to M12, also those with extended grip range. The wide range of suitable thread sizes provides the FireFox® 2 with a large variety of possible operation. The manual traction force control also makes it suitable for industrial applications where several material thicknesses need to be covered, which would normally require the use of several tools. Moreover, its outstanding 10 mm stroke is ideally suited to the new generation of large grip range blind rivet nuts, like the GESIPA®-PolyGrip® products.
