RAC2500P FAR Air Riveter

Features

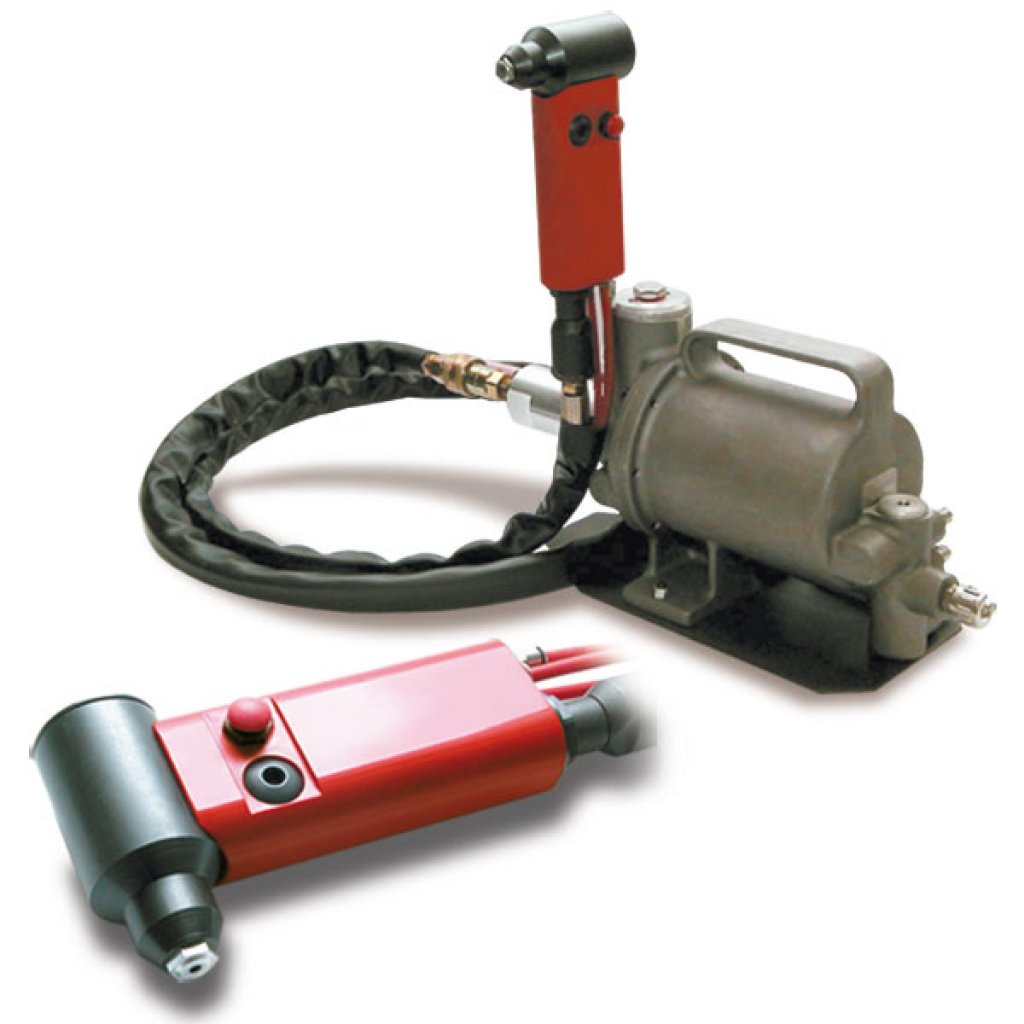

The FAR RAC2500P Riveter is a hydropneumatic tool perfect for use with blind rivets from 2.4mm up to 4.8m in all materials and up to 6.0mm in aluminium. It will also set 3.2, 4.0 & 4.8mm Multifar, Mulinox and Tamp rivet applications. All standard nosepieces sold complete with tool.

The FAR RAC2500P is a tool with a reduced head and push button control on the tool hand grip, which is perfect for high volume production due to its lightweight structure and operator friendly design. The size of the pistol is also ideal for narrow / confined spaces.

This tool features an intensifier separate to the pistol this is ideally suited for use on automated assembly lines as it offers low hand stress, Due to its lightweight design.

The simple push button operation of this tool makes for an excellent choice in any high-volume production environment.

Part-on are by FAR the best choice for all rivet and rivet tooling supply and service partnerships. We repair all tools in-house and have extensive knowledge, not only with FAR but all major manufacturers tooling and fasteners making us your perfect partner.

Benefits

• Lightweight, Fast Operation
• Ideal for rivets with 2.4-4.8mm in all material & 6.0mm in aluminium
• Stroke 17mm
• Maximum Force 14926N
• Operating Pressure: 6 bar | 90 PSI
• Capable Of Setting Tamp Rivets
• Supplied With One Year's Manufacture Warranty
• Part-on Can Service & Provide Spare Parts For This Tool

Do you require a tool repair / service? Click Here!

Setting Capacity (Standard Rivets)

Setting Capacity (Special Rivets)

FAR RAC2500P Air Rivet Tool

Specification
