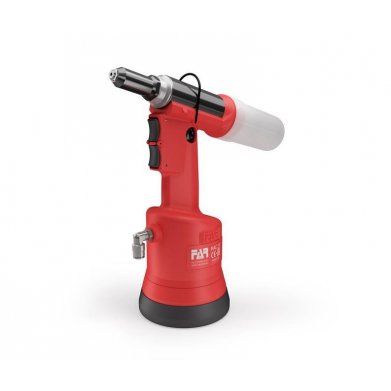

RAC 211 FAR Air Riveter

Features

The FAR RAC 211 is a hydro pneumatic rivet tool ideal for setting rivets from 2.4mm to 4mm in all materials and to 4.8mm in aluminium.

The FAR RAC211 has a useful vacuum feature which retains the rivet in place prior to installation. The RAC211 also automatically ejects the mandrel after the rivet is set.

The RAC 211 is designed to make use of the same spare parts of the RAC 210. No need to change any procedure.

The FAR RAC211 it is characterized as a lightweight and highperformance tool, essential in industrial production processes with the high volumes on the assembly lines. Thanks to a maximum force of 6.639 N and a reduced weight of 1.4kg, this tool claims an increase in the "force-to-weight ratio" of 22%.

Part-on are by FAR the best choice for all rivet and rivet tooling supply and service partnerships. We repair all tools in-house and have extensive knowledge, not only with FAR but all major manufacturers tooling and fasteners making us your perfect partner.

Benefits

• Lightweight, Fast Operation
• Ideal for rivets with 2.4-4mm in all material & 4.8mm in aluminium
• Stroke 16mm
• Maximum Force 6639N
• Operating Pressure: 6 bar | 90 PSI
• Capable Of Setting Structural Rivets
• Supplied With One Year's Manufacture Warranty
• Part-on Can Service & Provide Spare Parts For This Tool

Do you require a tool repair / service? Click Here!

Setting Capacity (Standard Rivets)

Setting Capacity (Special Rivets)

FAR RAC211 Air Rivet Tool

Specification
