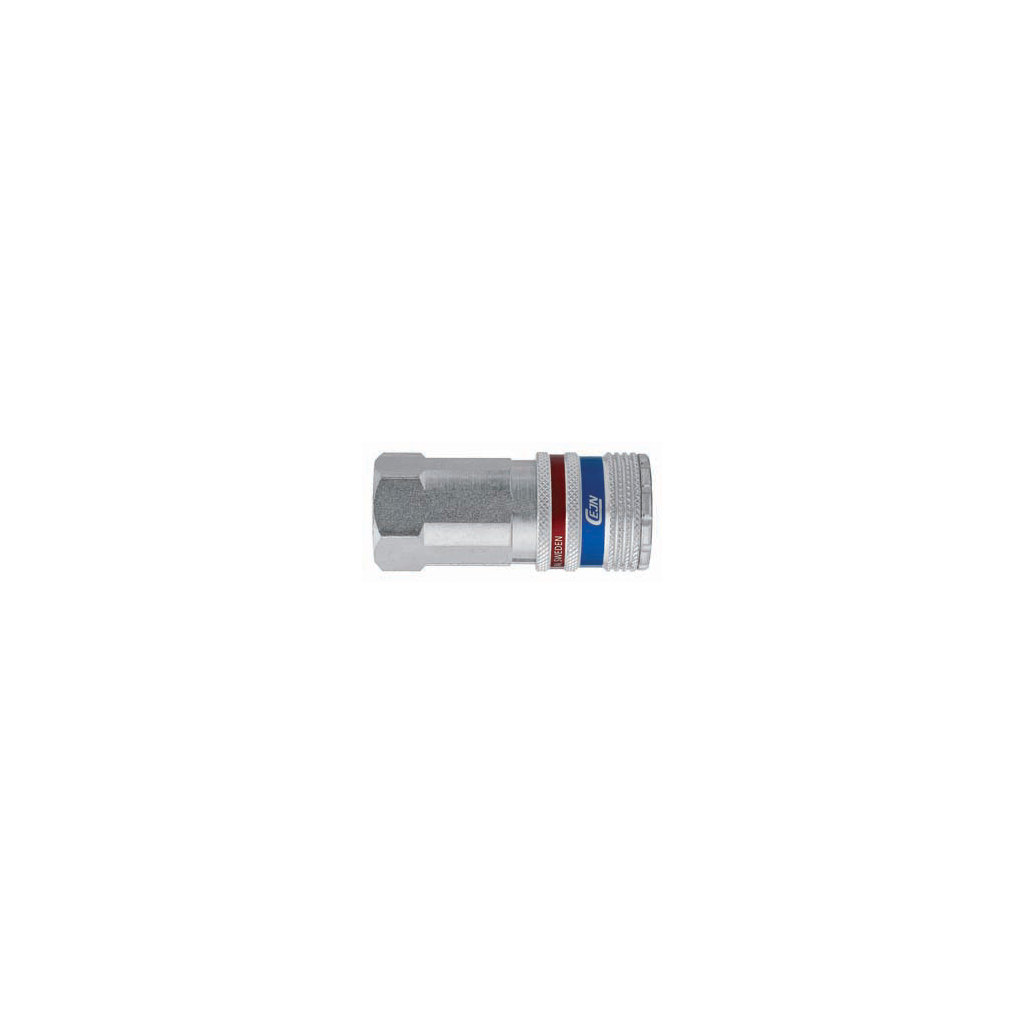

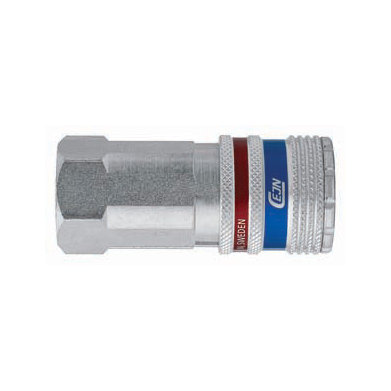

C103202204 - CEJN 3/8" Female E-Safe Coupling Series 320

FEATURES

• Nominal flow diameter 7.6 mm (5/16”)
• Flow capacity 2250 I/min (79.4 CFM)
• Max. working pressure 16 bar (232 PSI)
• Min. burst pressure 140 bar (2030 PSI)
• Connection force 86 N Temperature range -20ºC - +100ºC (-4ºF - +212ºF)

BENEFITS

• Vented safety function
• Extremely high flow capacity
• Compact design
• Pre-applied thread sealant
• Smaller outside dimension than comparable designs
• Easy to handle
• One hand operation
• Fully automatic operation
• Easy handling 320

Specification

Material

coupling Zinc-plated steel / brass Material nipple Hardened zinc-plated steel
