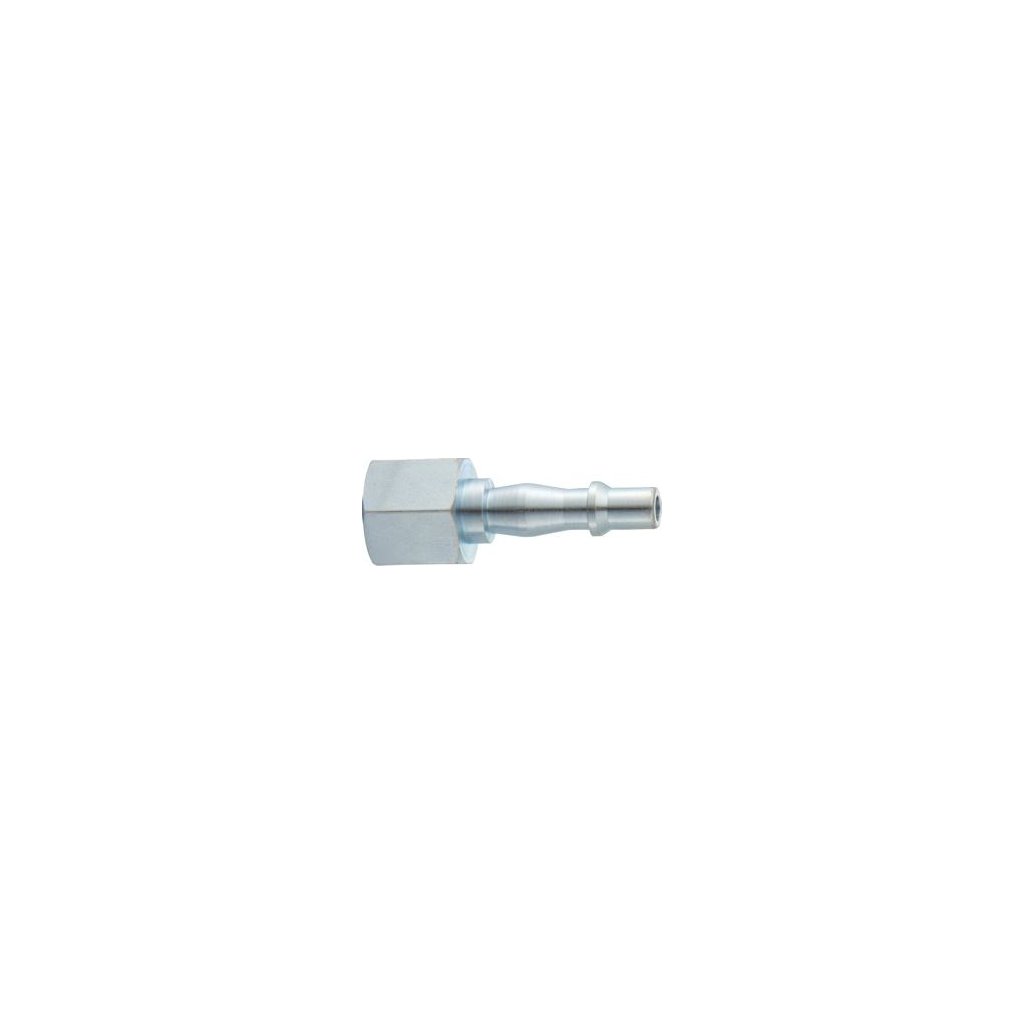

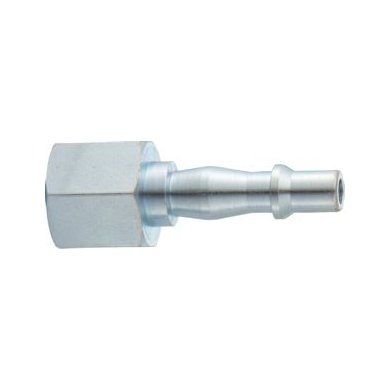

PCL 1/4" Female Air Fitting

FEATURES

• Nominal flow diameter 4.8 mm (3/16”)
• Flow capacity 1210 l/min (43.0 CFM)
• Max. working pressure 14 bar (200 PSI)
• Temperature range -40°C to +100°C (-40°F to +212°F)
• Airflow Series

BENEFITS

• Single action
• Positive locking mechanism
• Strong and durable
• Robust and hardwearing

Specification

MATERIALS

Coupling body Steel nickel plated Coupling back part Brass nickel plated Sleeve Steel nickel plated Valve Brass Springs, locking o-ring & balls Stainless steel Seals Nitrile NBR Nipple Steel nickel plated
