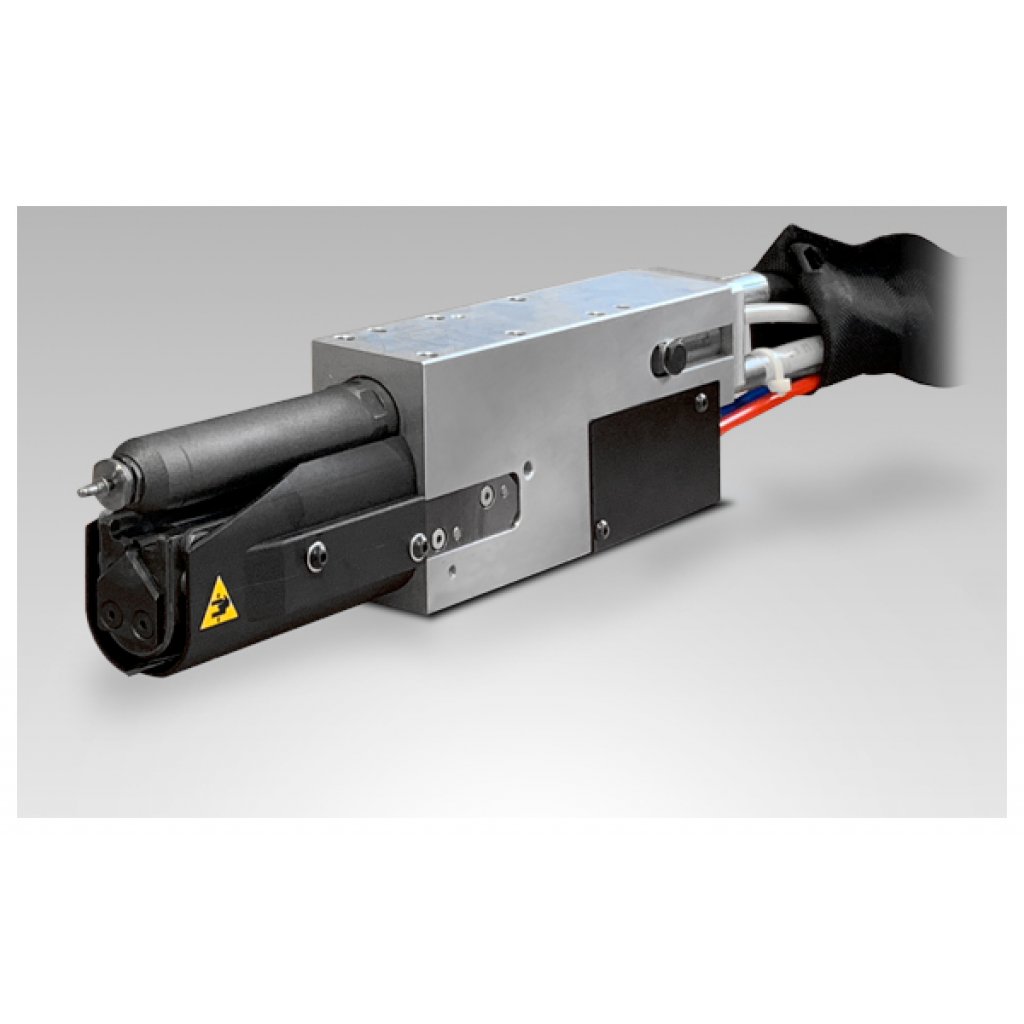

The automatic feeder AU250 is capable of setting standard rivets 3.2-5mm in all materials and 6mm in aluminium.
The automatic feed riveting tool is equipped to place one size of rivet only, as per customer request.
See image 2 for an example of application of the the tool on a robotised system.
The whole pneumatic unit and the selection and pulling systems for rivets have been completely replaced to achieve a higher efficiency and easier use.
In addition, the update of the rivet feeding unit has been carried out through the replacement of the PLC and the related program.
Designed to speed up the fitting of blind rivets
3.2-6mm Setting Capacity
Maximum Force 12500N (6 Bar)
Voltage 220 V / 50Hz
Supplied with a service plan
Setting Capacity (Standard Rivet)
Rivet Type | Aluminium | Steel | Stainless Steel | Copper | Copper Nickel |
---|---|---|---|---|---|
3.2mm | |||||
4.0mm | |||||
4.8mm | |||||
5.0mm | |||||
6.0mm |
Specification | FAR AU250 |
---|---|
Total weight | 83kg |
Riveting unit weight | 3.1kg |
Maximum force | 12500N (6 Bar) |
Air consumption | 25 NI/cycle |
Power supply cables and hoses length | 2.5m |
Operating pressure | 6-7 Bar |
Voltage | 220 V / 50 Hz |
Max. cadence | ~ 20 pcs/min |
A-weighted emission sound pressure level (A) | 80 dBa |
Root mean square in total acceleration frequency (Ac) to which the arms are subjected | 1.4 m/s2 |
Working temperature | +5° / +40° |
