Features

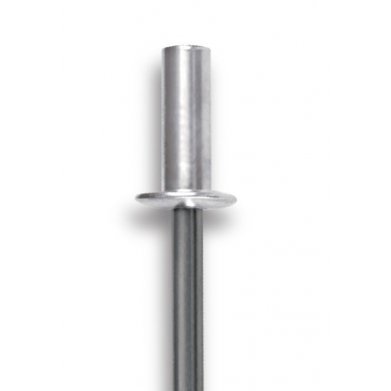

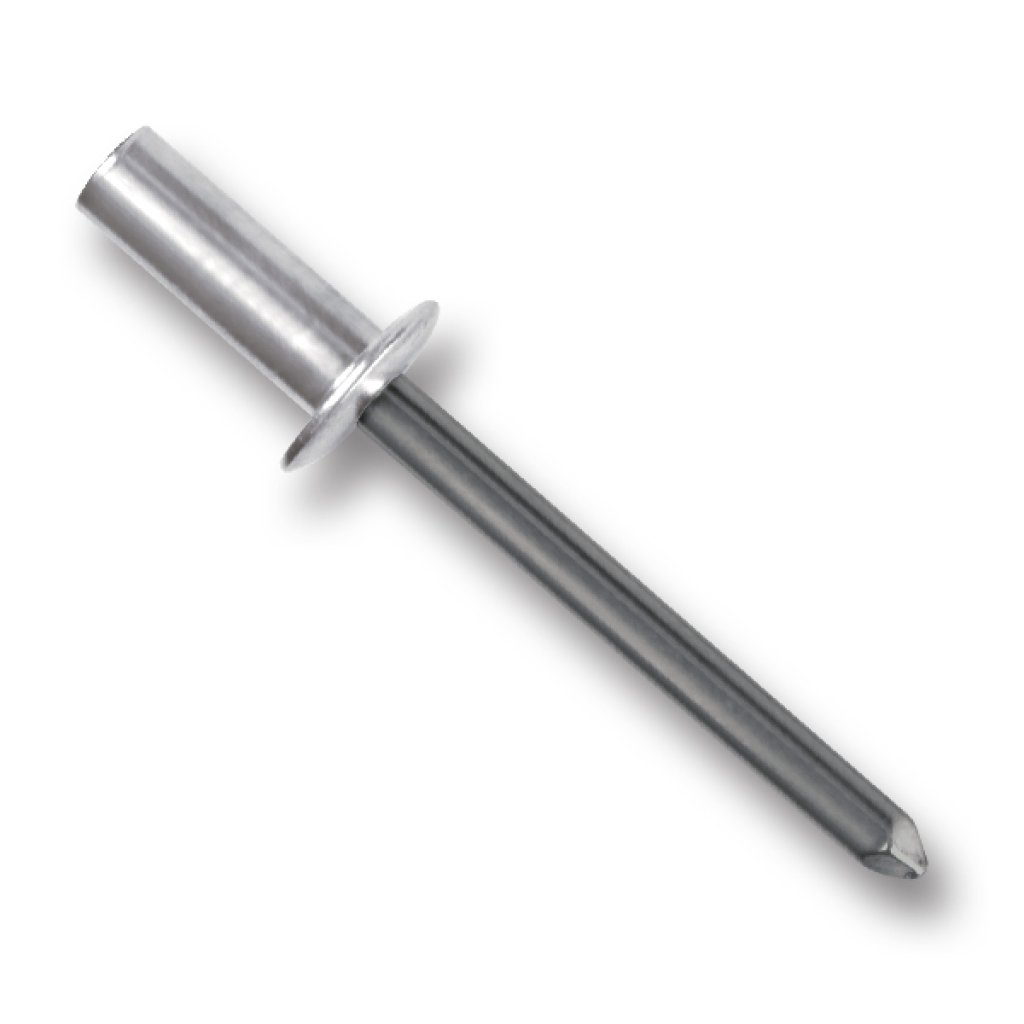

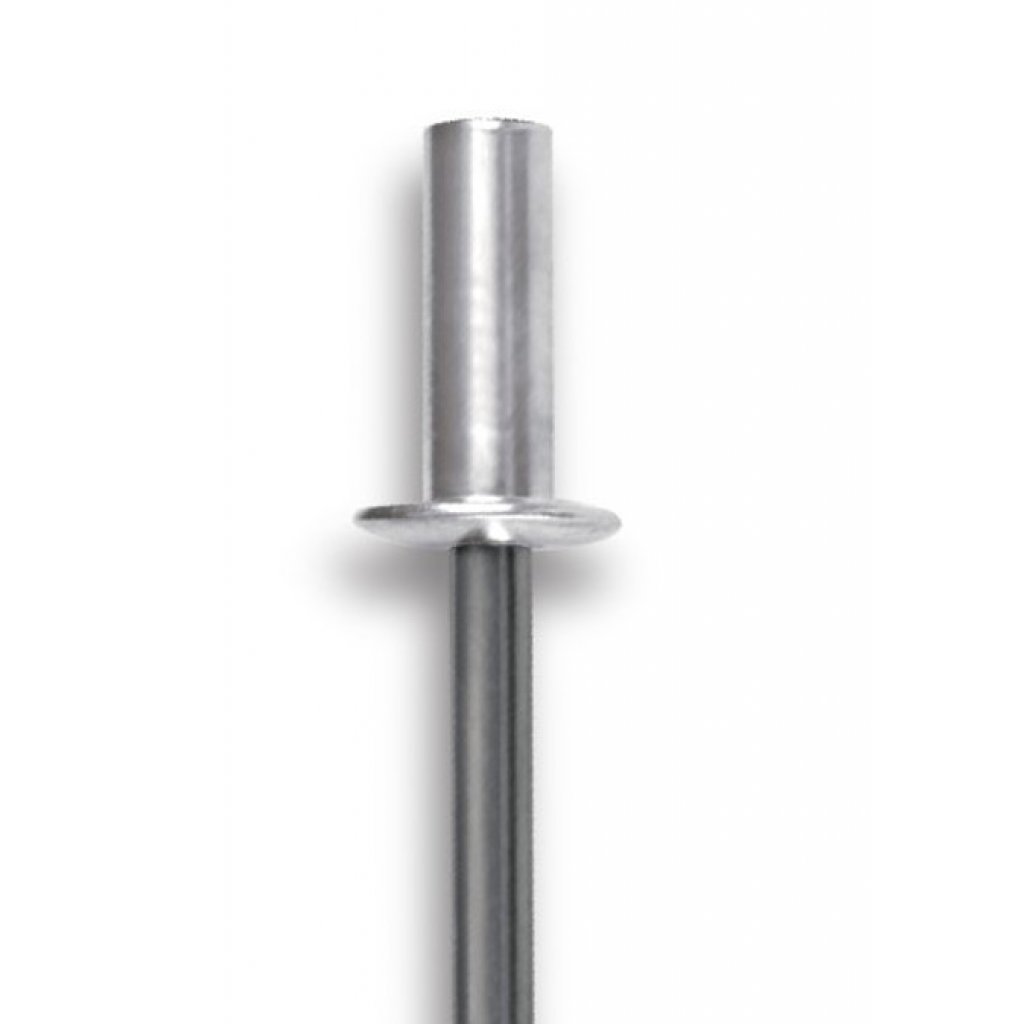

Our Aluminium Steel domed head sealed rivets are available in a wide range of materials and head styles. Our range of Aluminium Steel Domed sealed head rivets Ensure Water & Air Tightness as The sealed rivets are break mandrel blind rivets that guarantee a solid and high quality fastening. The joints are completely sealed to fluids, avoiding leakage of liquids or vapors due to the locking of the mandrel inside the rivet body.
Diamater (d) | Length (L) | Flange Diamater (D) | Drill Size | Grip Range | Part Number |
---|---|---|---|---|---|
4.8mm | 8.0mm | 9.5mm | 4.9mm | 1.0 - 3.0mm | FRS4808AS |
4.8mm | 9.5mm | 9.5mm | 4.9mm | 3.0 - 4.5mm | FRS4895AS |
4.8mm | 11.0mm | 9.5mm | 4.9mm | 4.5 - 6.0mm | FRS4811AS |
4.8mm | 12.5mm | 9.5mm | 4.9mm | 6.0 - 7.5mm | FRS4812AS |
4.8mm | 14.0mm | 9.5mm | 4.9mm | 7.5 - 9.0mm | FRS4814AS |
4.8mm | 16.0mm | 9.5mm | 4.9mm | 9.0 - 11.0mm | FRS4816AS |
4.8mm | 18.0mm | 9.5mm | 4.9mm | 11.0 - 13.0mm | FRS4818AS |
4.8mm | 21.0mm | 9.5mm | 4.9mm | 13.0 - 16.0mm | FRS4821AS |
4.8mm | 25.0mm | 9.5mm | 4.9mm | 16.0 - 20.0mm | FRS4825AS |
Rivet Specification
Rivet Size | Rivet Type | Head Type | Body Material (C) | Mandrel Material (D) |
---|---|---|---|---|
4.8mm | Closed | Domed Head | Aluminium | Steel |
Benefits
Types of Applications
