Features

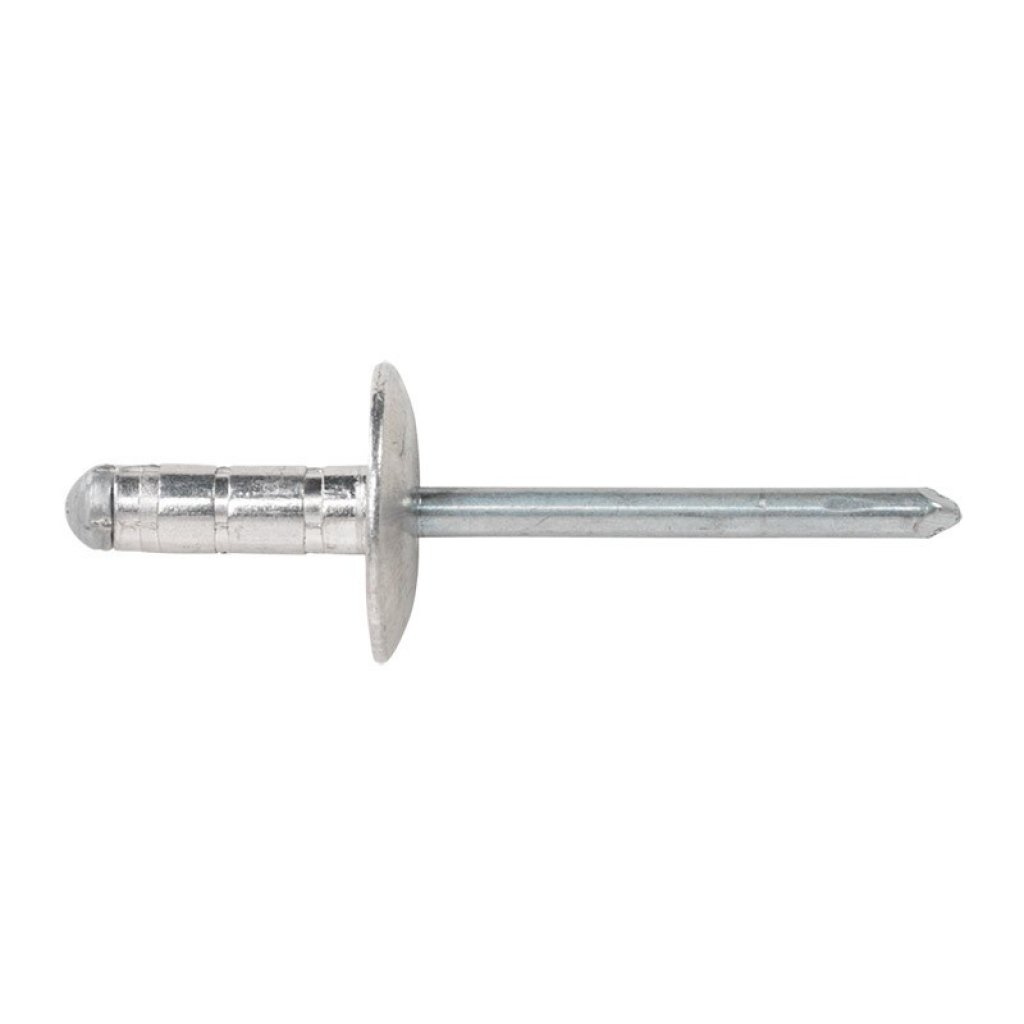

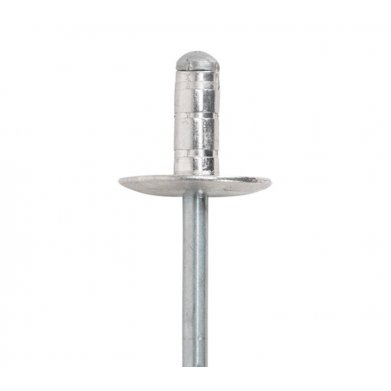

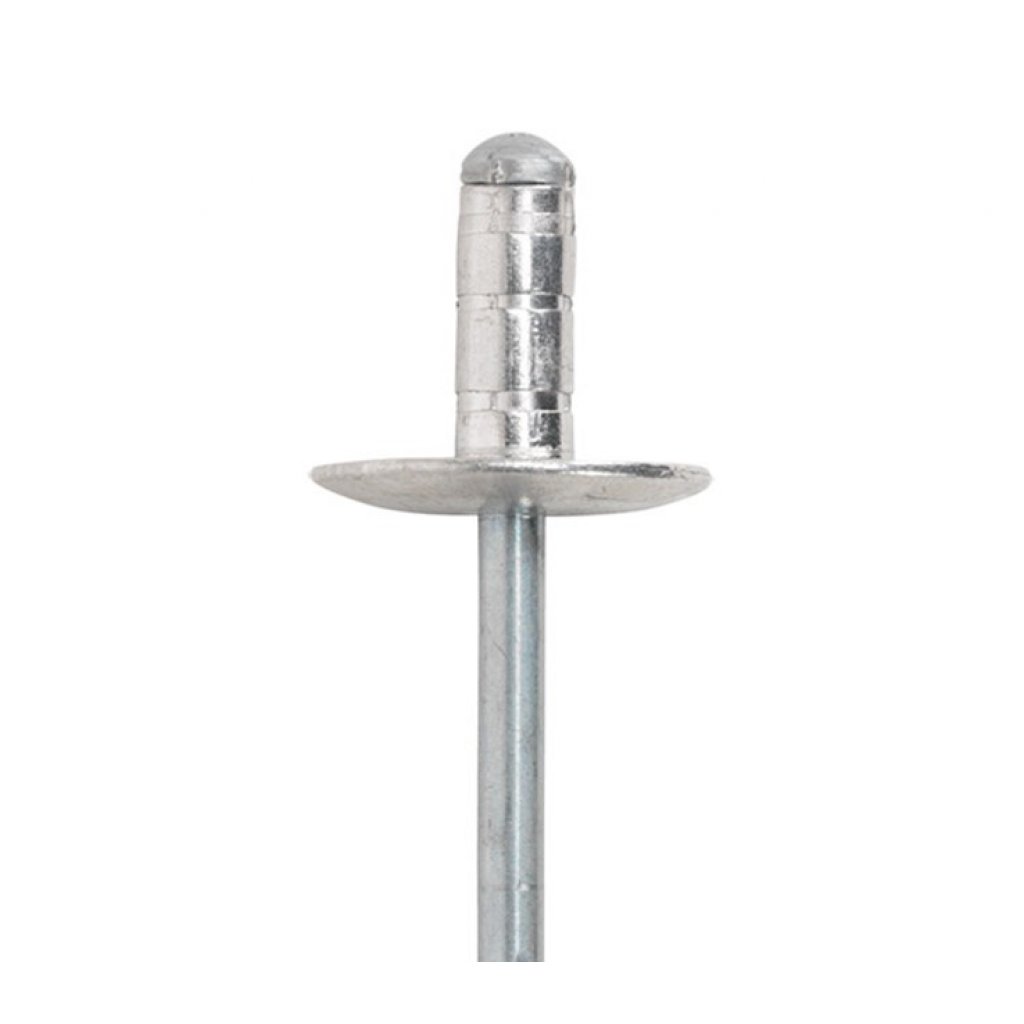

Our Aluminium Steel Large Flange domed head multi grip rivets are available in a wide range of materials and head styles. Our range of Aluminium Steel Large Flange Domed head multi grip rivets offers versatility and a much greater grip range as opposed to standard rivets.Due to its fastening feature of wide expansion on the blind side, the load and torque forces are well distributed. It is, therefore, especially suitable for working with plastics and thin metal sheets and it is often used for repairing. Our Multi Grip rivets also provides a tight seal against weather conditions.
Diamater (d) | Length (L) | Flange Diamater (D) | Drill Size | Grip Range | Part Number |
---|---|---|---|---|---|
4.0mm | 8.0mm | 12.0mm | 4.1mm | 0.5 - 4.5mm | FRML400812AS |
4.0mm | 10.0mm | 12.0mm | 4.1mm | 1.5 - 6.5mm | FRML401012AS |
4.0mm | 11.1mm | 12.0mm | 4.1mm | 2.5 - 7.5mm | FRML401112AS |
4.0mm | 12.0mm | 12.0mm | 4.1mm | 3.5 - 8.5mm | FRML401212AS |
4.0mm | 12.7mm | 12.0mm | 4.1mm | 4.0 - 9.5mm | FRML401212AS |
4.0mm | 14.0mm | 12.0mm | 4.1mm | 5.5 - 10.5mm | FRML401412AS |
4.0mm | 16.0mm | 12.0mm | 4.1mm | 7.5 - 12.5mm | FRML401612AS |
4.0mm | 17.0mm | 12.0mm | 4.1mm | 8.5 - 13.5mm | FRML401712AS |
4.0mm | 18.0mm | 12.0mm | 4.1mm | 9.5 - 14.5mm | FRML401812AS |
4.0mm | 20.0mm | 12.0mm | 4.1mm | 11.5 - 16.5mm | FRML402012AS |
Rivet Specification
Rivet Size | Rivet Type | Head Type | Body Material (C) | Mandrel Material (D) |
---|---|---|---|---|
4.0mm | Large Flange Multi Grip | Domed Head | Aluminium | Steel |
Benefits
Types Of Applications
