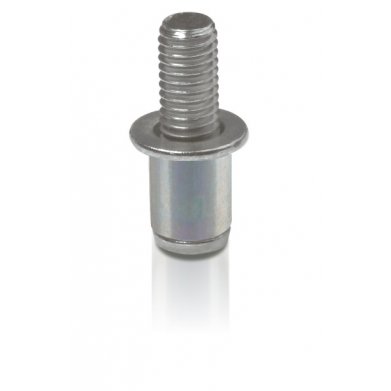

M5 Steel Round Body Flat Head Rivet Bolt

Model Number FRBM5SS   Part Number FRBM5SS

M5 Steel Round Body Flat Head Rivet Bolt

Our extensive range of Steel Round Body Flat Head Rivet Bolts are perfect for a wide range of applications.

Features
  • Head: Steel | Body: steel
  • Round Body
  • Grip Range - Please refer to table below
  • Wide range of rivet bolt lengths available - Please Select
  • Wide range of pack sizes available - Please Select

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£9.79 ex. vat

£11.75 inc. vat

Buy Now

M5 Steel Round Body Flat Head Rivet Bolt

Features

Part-on Stock a range of round body rivet bolts

Rivet Bolts are a type of fastener which alow a pre-installation of the piece to be screwed onto the male thread. The mandrel, when installed, protrudes from the workpiece, allowing the correct placement of the pieces to be fixed so that the final assembly takes place with a nut. It is a very practical fastening element since it does not require access on both sides.

Rivet bolts are an ideal choice of fastener when you have an application which involves heavy parts or if you have an application with difficult access. It is manufactured by welding and is widely used in air conditioning systems, electrical appliances and electronics.

Benefits

  • Excellent solution to obtain a reliable and resistant male thread in materials with a reduced thickness (0.5 mm).
  • Single-sided access (blind insert nut).
  • The surface does not suffer from heat stress nor deformations.
  • Its installation can be introduced at any stage of production.
  • Short assembly cycle time.
  • Its large head provides a big bearing area that reinforces the hole and prevents any pulling or pushing failure. It can also be used as a separator.

Types of Applications

  • Automotive Industry
  • Metal construction
  • Electrical appliances
  • Air Conditioning
  • Light fabrication in general

Specification

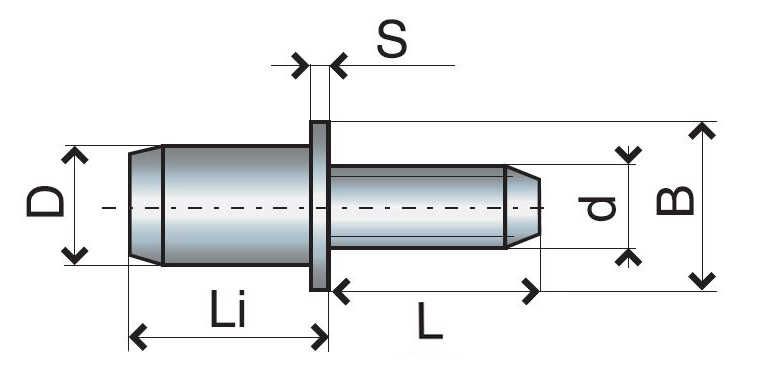

Bolt Diameter (d)Bolt Length (L)Body Length (Li)Body Diameter (D)Flange Diameter (B)Flange Thickness (S)Drill SizeGrip Range
M5 15.0mm 12.0mm 6.9mm 10.0mm 1.0mm 7.0mm 0.5 - 3.0mm
M5 25.0mm 12.0mm 6.9mm 10.0mm 1.0mm 7.0mm 0.5 - 3.0mm
